Chamfer Corner > Complete (Trim Menu)

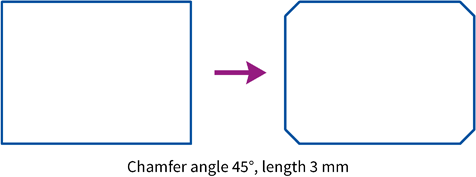

This command can be used to chamfer all the corners in a curve or surface at the same time. Only corners made of two lines will be chamfered.

After choosing the command, a dialog appears, in which the chamfer angle and length can be entered.

Unless you chose a symmetrical angle, a dialog asks whether to measure the angle relative to the first or second edge after the curve or surface has been identified. The first edge is the edge before the identified corner (according to the objects orientation), the second edge is the edge behind the identified corner (according to the objects orientation). To see an object’s orientation, activate the "Direction Arrows" option at Manage > Drawing Settings > Screen.

A corner made up of two individual lines can be chamfered using the command Chamfer Corner > Object - Object. A single corner of the curve or surface can be chamfered using Chamfer Corner > Complete.
