Create Table

Table > Create Table (Annotate Menu)

www.CAD6.com

This command can be used to create a table. A table is an array of cells that contain texts. Tables can contain arbitrary text or references to databases opened in CAD6.

1.	Create Table

After choosing the command, the following dialog for defining the table’s properties appears:

How can I access information on this dialog?

2.	Enter destination point

The position of the upper left corner of the table can be entered using the mouse, by clicking anywhere in the drawing.

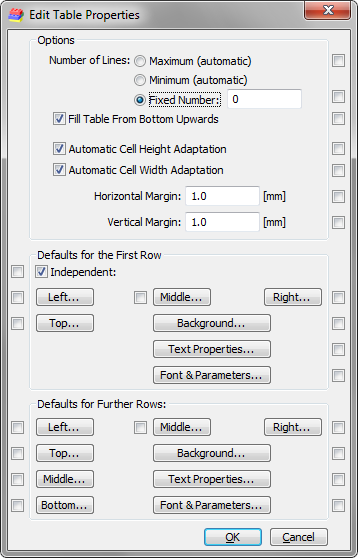

For editing the table’s options, the following dialog appears. It also appears if a table is to be edited using the standard property editing mechanism of CAD6.

How can I access information on this dialog?

The appearance and functionality of this dialog depends on how many objects have been selected:

Why do dialogs differ depending on the number of objects selected?
