Edit Color > Tint (Modify Menu)

www.CAD6.com

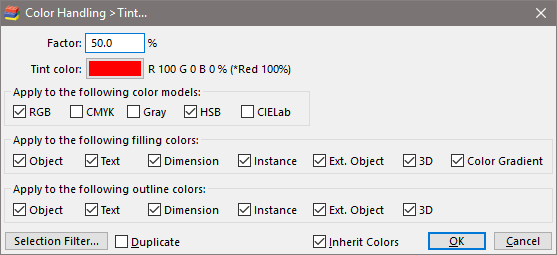

This command can be used to tint objects. After choosing this command, a parameter dialog window appears. In this dialog window, you can mark several object types to be effected. Only those object types marked will be modified.



1.Choose objects
Choose the objects that are to be tint.



After choosing the objects, they will be tint. If the duplicate function is active, a copy of the chosen objects is created and the copy is altered. This means that a copy with tint colors can be created.



Options

How can I access information on this dialog?





Note: This command will affect all objects types that are marked in the parameter dialog window. It will not effect bitmaps or block elements that have fixed color properties!
