Parametric Compound > Add Freedom, Radial Scaling (Library Menu)

This command can be used to add a "Radial Scaling" freedom to a selected parametric compound.

The parametric compound to be edited must be chosen. Click on an object to choose it.

Choose the points that shall be part of the freedom. Click on points to choose them.

The reference point of the freedom can be entered by clicking the mouse anywhere in the drawing.

The target point of the freedom can be entered by clicking the mouse anywhere in the drawing.

After entering the two points, the "Edit Freedom" dialog appears, in which the parameters for the freedom are entered.

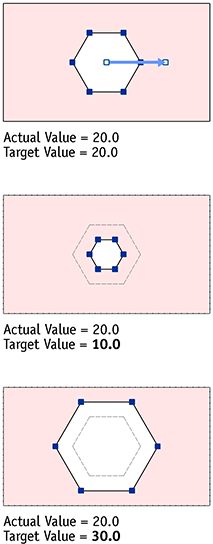

The following images show an exemplary compound with one freedom of type "radial scaling". Dark blue squares indicate the selected points, the light blue arrow runs from the reference point to the target point:

Please refer to Parametric Compounds for general information.
