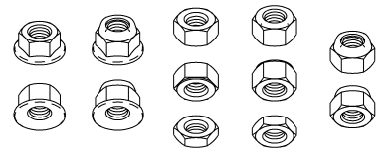

423: 3D Nuts DIN 1661/3/4, 7040/2, 7719, 24032/3/5 (Standard Libraries)

Author: Michel Christiaens

Library Content "(3D) Nuts DIN EN 1661, 1663, 1664"

Flange\DIN EN 1661\Bottom View\M5..M20

Flange\DIN EN 1661\Top View\M5..M20

Prev. Torque\DIN EN 1663\Bottom View\M5..M20

Prev. Torque\DIN EN 1663\Top View\M5..M20

Prev. Torque\DIN EN 1664\Bottom View\M5..M20

Prev. Torque\DIN EN 1664\Top View\M5..M20

Library Content "(3D) Nuts DIN ISO 7040, 7042, 7719"

All-metall\DIN ISO 7042\Bottom View\M5..M36

All-metall\DIN ISO 7042\Top View\M5..M36

All-metall\DIN ISO 7719\Bottom View\M5..M36

All-metall\DIN ISO 7719\Top View\M5..M36

Non-metallic Insert\DIN ISO 7040\Bottom View\M3..M36

Non-metallic Insert\DIN ISO 7040\Top View\M3..M36

Library Content "(3D) Nuts DIN EN 24032, 24033, 24035"

Thick\DIN EN 24032\Design 1\Bottom View\M1.6..M64

Thick\DIN EN 24032\Design 1\Top View\M1.6..M64

Thick\DIN EN 24032\Design 2\Bottom View\M1.6..M64

Thick\DIN EN 24032\Design 2\Top View\M1.6..M64

Thick\DIN EN 24033\Design 1\Bottom View\M5..M36

Thick\DIN EN 24033\Design 1\Top View\M5..M36

Thick\DIN EN 24033\Design 2\Bottom View\M5..M36

Thick\DIN EN 24033\Design 2\Top View\M5..M36

Thin\DIN EN 24035\Bottom View\M1.6..M64

Thin\DIN EN 24035\Top View\M1.6..M64

Libraries with the addition "3D" do not contain any 3D data, only an isometric view!
