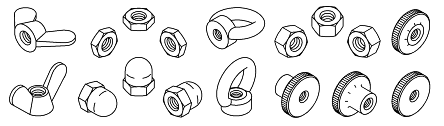

414: 3D Nuts DIN 315, 439, 466/7, 582, 917, 934, 986, 1587 (Standard Libraries)

Author: Michel Christiaens

Library Content "(3D) Nuts DIN 315" (Wing Nut)

Top View\M3..M24

Bottom View\M3..M24

Library Content "(3D) Nuts DIN 439" (Hexagon Nut, Low Profile)

M1,6..M30

Library Content "(3D) Nuts DIN 466" (Knurled Thumb Nut, High Type)

Bottom View\M1..M10

Top View\M1..M10

Library Content "(3D) Nuts DIN 467" (Knurled Thumb Nut, Thin Type)

Bottom View\M1..M10

Top View\M1..M10

Library Content "(3D) Nuts DIN 582" (Ring Nut)

Top View\M8..M100

Bottom View\M8..M100

Library Content "(3D) Nuts DIN 917" (Cap Nut, Thin Type)

Coarse\Bottom View\M4..M48

Coarse\Top View\M4..M48

Fine\Bottom View\M8..M48

Fine\Top View\M8..M48

Library Content "(3D) Nuts DIN 934" (Hexagon Nut)

M1..30

Library Content "(3D) Nuts DIN 986" (Prevailing Torque Cap Nut)

Coarse\Bottom View\M4..M20

Coarse\Top View\M4..M20

Fine\Bottom View\M8..M20

Fine\Top View\M8..M20

Library Content "(3D) Nuts DIN 1587" (Cap Nut, High Type)

Coarse\Bottom View\M4..M24

Coarse\Top View\M4..M24

Fine\Bottom View\M8..M24

Fine\Top View\M8..M24

Libraries with the addition "3D" do not contain any 3D data, only an isometric view!
